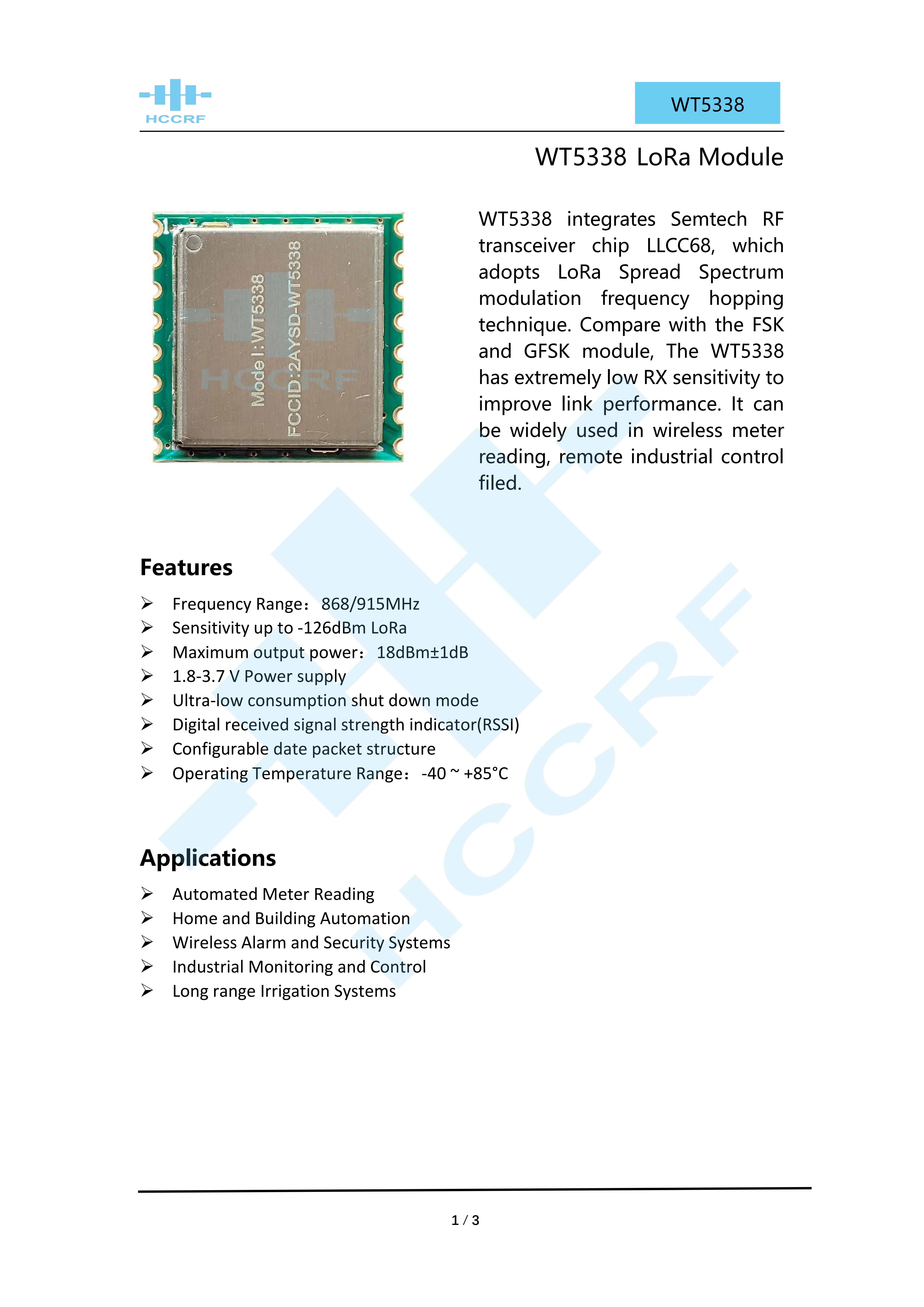

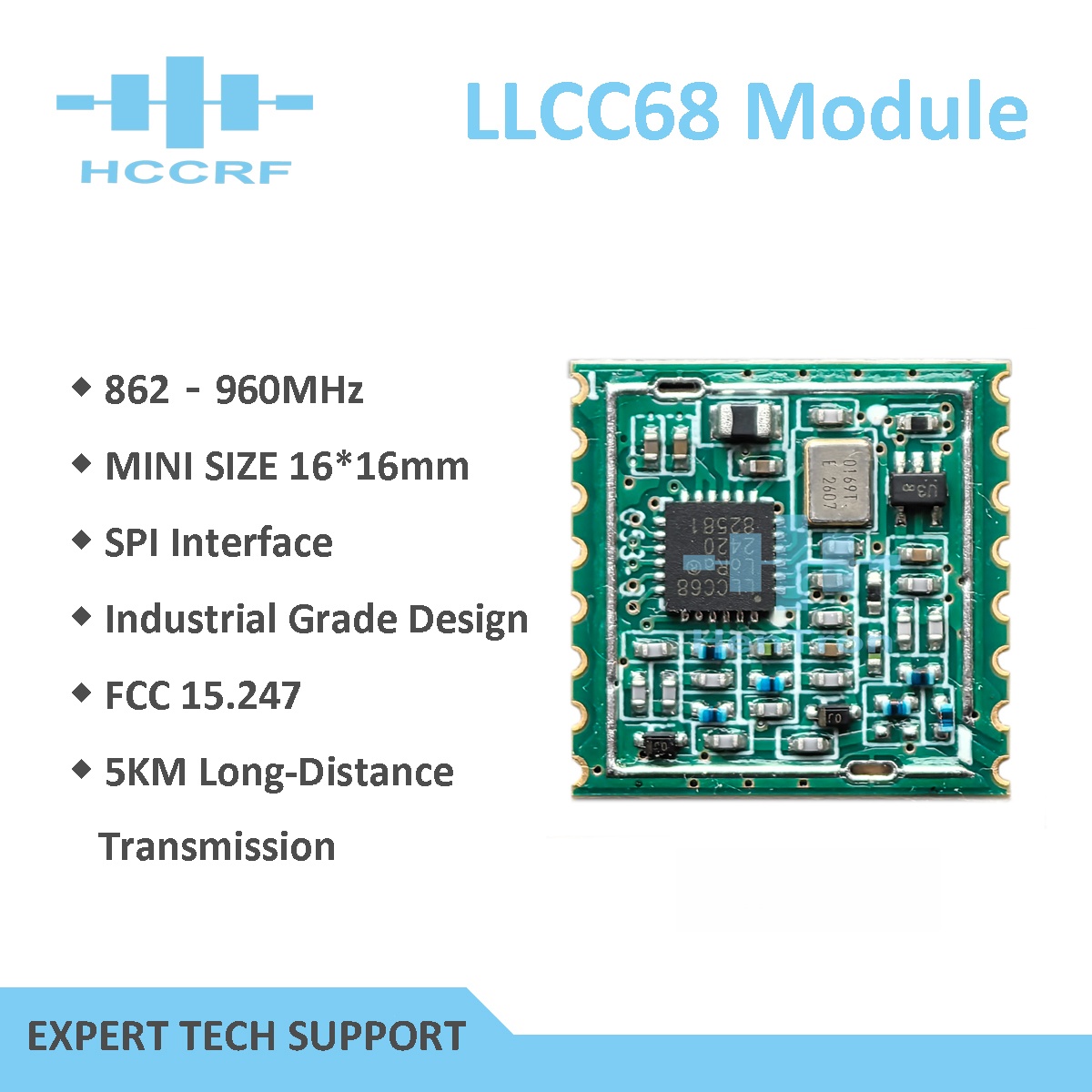

WT5338 LoRa Module
WT5338 integrates Semtech RF transceiver chip LLCC68, which adopts LoRa Spread Spectrum modulation frequency hopping technique. Compare with the FSK and GFSK module, The WT5338 has extremely low RX sensitivity to improve link performance. It can be widely used in wireless meter reading, remote industrial control filed.
Features
Frequency Range：868/915MHz
Sensitivity up to -126dBm LoRa
Maximum output power：18dBm±1dB
1.8-3.7 V Power supply
Ultra-low consumption shut down mode
Digital received signal strength indicator(RSSI)
Configurable date packet structure
Operating Temperature Range：-40 ~ +85°C
Applications
Automated Meter Reading
Home and Building Automation
Wireless Alarm and Security Systems
Industrial Monitoring and Control
Long range Irrigation Systems
